Important Collection of Neurosurgical Instruments
from South Australia

ACKNOWLEDGMENTS: We are most grateful to Emeritus Neurosurgeon (RAH & WCH) Professor Donald Simpson AO for allowing us to view the catalogue and his publication of the same in the Journal of Neurosurgical Science. (Clin Neurosci 2003 10(6) 715-716) He also contacted the Neurosurgical  Society of Australasia (NSA) and obtained from Stacie Gull to copy some of his figures and photographs.

As a curator, Professor Simpson has been responsible for maintaining and cataloguing the collection of important neurosurgical instruments displayed in the Dinning Neuroscience Library at the Royal Adelaide Hospital in Adelaide. The suggestion to assemble such a collection was first made by K.G. Jamieson at the Perth meeting of the NSA. He also made the first donation, an early 19th century case containing a trephine and skull saw.

Numerous donations of early neurosurgical instruments followed.  Many were from past presidents of the NSA, and their pupils. Noted neurosurgeons, such as Hugh Trumble, Antony James, Leonard Lindon. Rex Money, Douglas Miller also contributed generously. to the collection. Some items were their personal instruments. Many items represent the influence of Harvey Cushing (1969-1939) an American neurosurgeon on Australian neurosurgery. Instrument manufacturers such as Down Bros, Aesculap and Medtronic also contributed.

The catalogue contains many important references to Sir Hugh Cairns (1896-1952) who was born in Port Pirie in South Australia and commenced his medical studies in Adelaide. This collection has been exhibited in Adelaide at several Australasian and international meetings.

Quite recently (July 2009) the Executive Committee of the NSA decided to move the collection to the Royal Australasian College of Surgeons in Melbourne. While some persons may regret this, the storage facilities and potential for greater access are cogent reasons for such a move. It seems no different from the co-location of important Impressionist collections in the Cortauld and Phillips galleries in London and Washington. Both can be accessed by the internet but personal attendance is a unique experience. The same will presumably apply to the neurosurgical collection.

The following items have been copied from Professor Simpson’s catalogue and his publication in the Journal of Clinical Neuroscience. The entries contain a precise description of the source, history and function of each item.

The alpha numeric codes define the instrument types. Some 95 instruments are described and classified as above. In each instance the item’s source, history and use is described by the curator


Instrument categories

Braces, burrs, perforators and trephines.
Chisels and osteotomes.
Curettes, elevators and spoons
Haemostatic clips and clamps.

Head clamps
Lights, loupes, and microscopes.
Needles, needle holders and knot-tiers
Probes and dissectors

Psychosurgical instruments
Radiological equipment
Rongeurs and punch..
Saws (see also under BR)

Scalpels, knives and tenotomes
Sci ssors
Shunts and other equipment for hydrocephalus
Stereotactic devices and ventriculoscop

Alphanumeric code






The alpha numeric codes define the instrument types. Some 95 instruments are described and classified as above. In each instance the item’s source, history and use is described by the curator

pocket trephine set

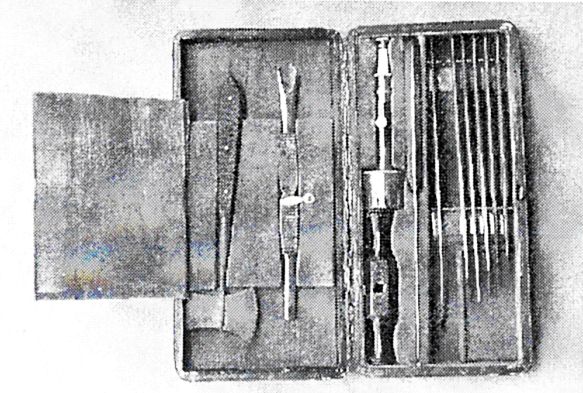

Fig. 3 Pocket craniotomy trephine set, presented to the Neurosurgical Society of Australasia by KG Jamieson on 3 May 1973.

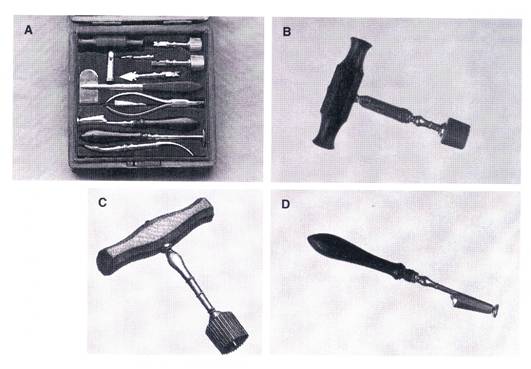

04A donation to the collection made by Professor Simpson in 1975. A trephine set with skull saw and other instruments believed to be of 18th century BritIsh manufacture.

A= set in shagreen case:
B= trephine and handle assembled.
C=similar trephine figured by Percival Pott.
D= the lenticular, an instrument used to scrape bone edges.


SC 4
Dissection scalpel used by Hugh Cairns  as a medical student.
Not in previous catalogue
This nickel plated solid forged scalpel is inscribed “1912 U of A   (University of Adelaide). Hugh Cairns Scalpel Anat. School” The inscription is written on a white material, perhaps zinc oxide.

It is believed that the scalpel was given by Cairns to his class mate Albert Ray Southwood (1894-1973). later a distinguished honorary physician in the Royal Adelaide Hospital. Southwood evidently preserved the scalpel as a memento of his friend.

In 19th century English Medical Schools, anatomy was usually taught by practising surgeons, who dissected cadavers with ebony handled scalpels in general surgical use. The advent of thermal sterilization around 1890 made ebony unsuitable for surgery, but John Kirkup (personal communication 23 Nov. 2005) notes that Down’s catalogue in 1892 still offered ebony handled scalpels for anatomical dissection. By 1906 Down also offered solid forged scalpels for dissection. Scalpels with disposable blades later entered anatomy schools, but solid forged scalpels were used as late as the 1940s, and in 1944 a popular textbook offered students guidance on how to sharpen their scalpels with carborundum stone2.

Cairns entered the Adelaide Medical School in 1912 and studied anatomy under the famously eccentric Professor Archibald Watson (1849-1940), whose teaching Cairns greatly admired. Cairns was only 15 when he began his course; he was a good student, usually obtaining first class passes. He took time off in May 1915 to serve as a private in the 3rd Australian General Hospital during the Gallipoli campaign. He resumed his course in April 1916, and graduated top of his final year in June 1917, the youngest of his class and a Rhodes Scholar. He then rejoined the Australian Army Medical Corps as a captain, and served in France.1

Maker  not known.
Donor  Richard Southwood FRCS(Eng), orthopaedic surgeon and son of AR Southwood, 29 November 2005.


1 Fraenkel GJ  Hugh Cairns. Oxford University Press 1991. pp 4-11.

2 Grant JCB.  A method of Anatomy.Baltimore. Williams &
                  Wilkins 3rd ed. 1944. P xxii.

Entry in the catalogue referring to Sir Hugh Cairns and his early medical career.

Braces, burrs, perforators and trephines

BR1: Brace and perforator, 17th century (Fig. 1)


Fig. 1 Brace and perforator, believed to date from the 17th century and made in Montpellier.


This French instrument is made of iron and ivory. Presumably the perforator, which is detachable, was changed for a trephine or a burr once the bone had been penetrated. Burrs and rounded drill points had been described by Berengario da Carpi (c1460-1530),2 and the use of a brace for trephination is doubtless much older. This neat little brace, only 20.6 cm from the socket for the per­forator to the ivory handle, is typical of continental European braces, at a time when English surgeons tended to favour gimlet handles for trephination.
Maker: The maker's name, Bonnerout of Montpellier, is engraved on the holder of the perforator. Montpellier has been a leading centre of French medicine since the 12th century AD, if not earlier



 Fig. 4. Assembled trephine and handle, ready to use; from an instrument set dating about 1870-1880. Trephines of this type were in use well into the 20th century, but were nickel plated and did not have slots to allow the escape of bone dust.


The trephine is made of a steel cylinder about 21 mm. In diameter, with serrations and also slots to allow bone dust to escape; this device is credited to Benjamin Bell  (see BR2). The trephine has a retractable centring point; the shank is made of brass.  All these beautifully made instruments had ebony handles. After about 1890 the use of steam sterilization made ebony handles unsuitable, although conservative surgeons were slow to accept this.
