Glass-eye history & manufacture

Photographs, text, materials, and process
kindly provided with the permission of Paul McLarin

There is evidence that both Egyptians and Romans decorated their dead and statues with artificial eyes made from bronze, gems, or silver. Ambrose Pare (1510-1590) described prostheses made from precious metals and worn in front of an atrophic eye. Venetian glass blowers made some of the first glass eyes. Later the French and Germans entered the field, usually as family groups and the latter brought the art to the USA .

The early Australian glass eyes were made in Adelaide by Mr. Scheiffer a German who arrived here in the 1930s. While at present many eye prostheses are made from Methacrylate resin, the occurrence of allergies and other socket problems necessitate the continued use of glass as an alternative. Currently this work is carried out by Paul McClarin, the only current expert in Australia . As a 2003 Churchill Scholar he worked with Mr. Frank Muller-Uri in Lauscha, but also visited several other centres there. The following photographs document and illustrate the materials and stages in the making of a glass eye.

Paul McClarin and his wife Margaret

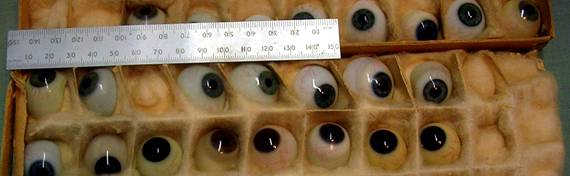

Part of a collection of prostheses made by Mr.Scheiffer in the last century

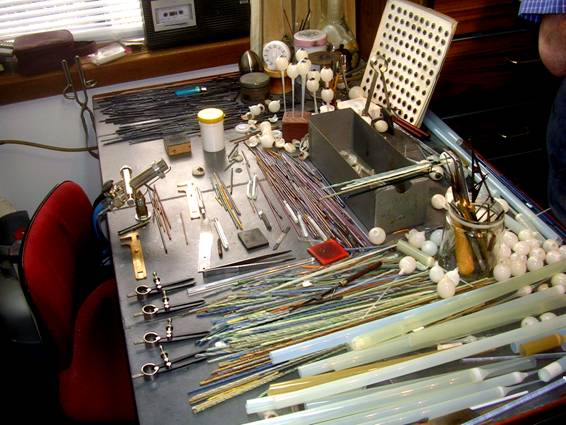

Work bench and butane burner

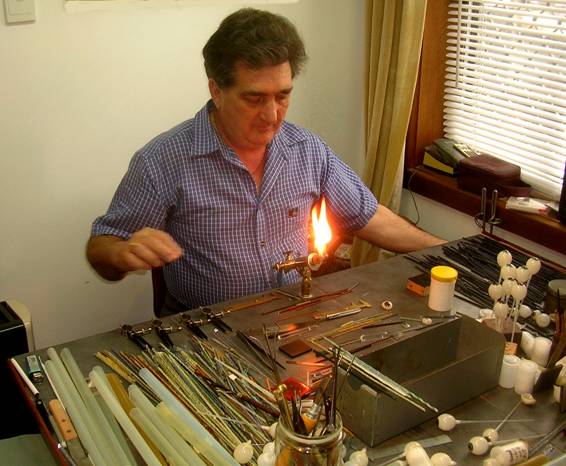

Paul McLarin at the work bench with butane burner lit

Steps in making a glass eye

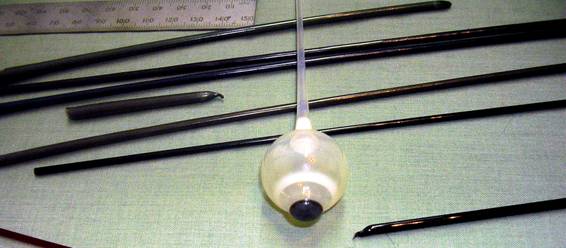

Partially made eye and coloured glass rods the short thick rod is black to stain the pupil

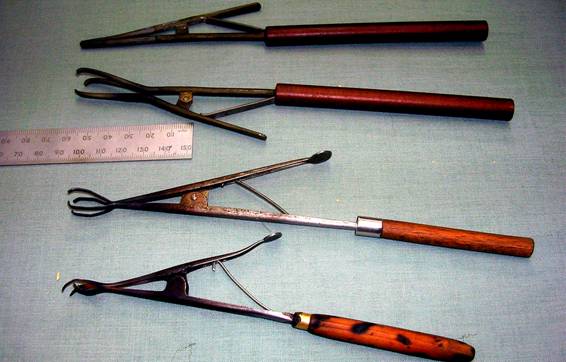

Instruments used to grasp the prosthesis in the final stages

Photograph of good eye for colour match

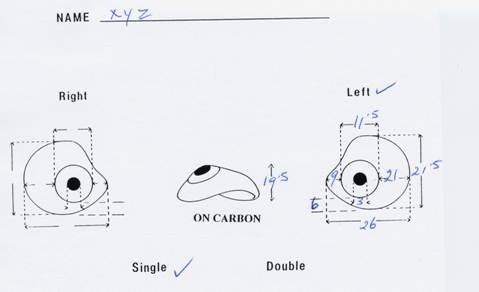

Dimension chart to “size” the artificial eye

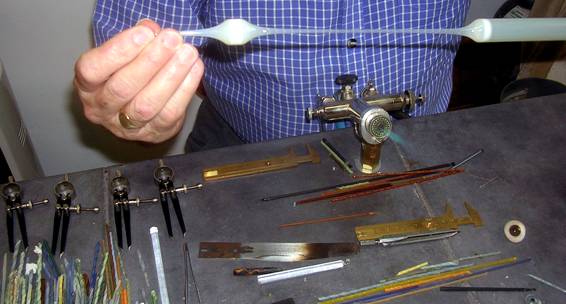

First stage of shaping the eye ball from a German glass tube

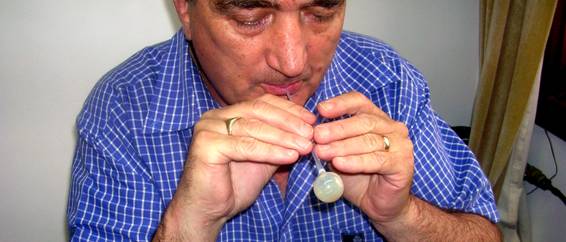

Early eyeball on the end of the hollow glass tube. The size can be changed by altering the pressure in the globe

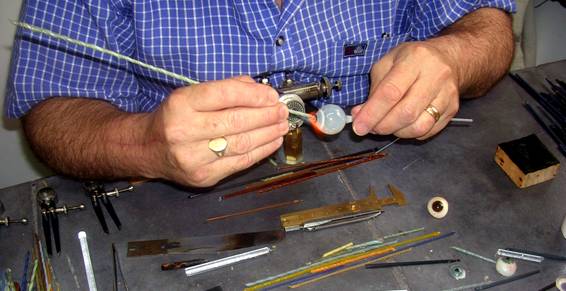

Application of colour to the iris

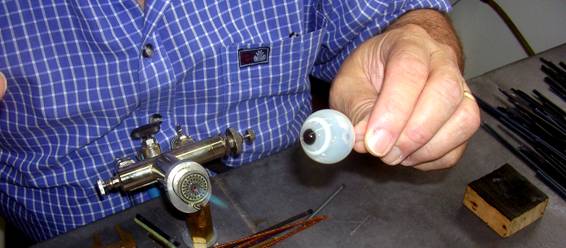

Creating the pupil

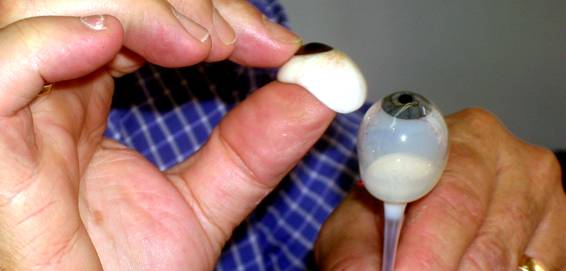

A finished prosthesis next to “ work in progress”. The hollow back is created by using negative pressure

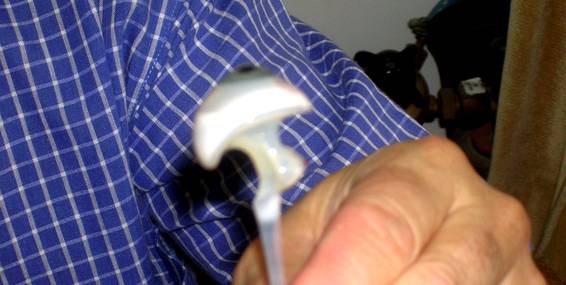

An early stage in hollowing out the back

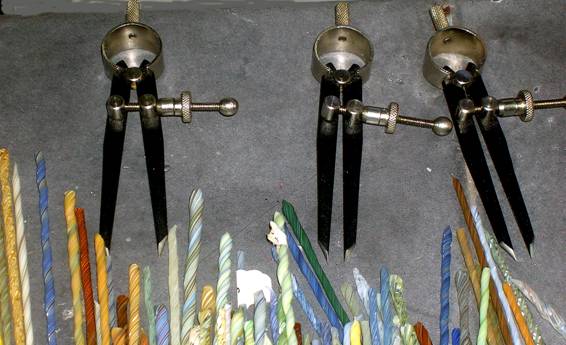

Measuring instruments to check on the size of the prosthesis. Also coloured glass rods

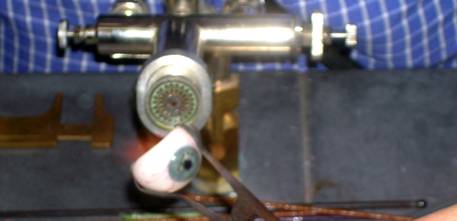

Nearing the final stage. A flame is used to smooth the posterior aspect of the eye
